See below for examples on how to draw your polygon shower pans and pans with curves prior to sending them to The Waterproofing Company.

When your plans are ready and you've reviewed our checklist, contact us for a quote and/or to book an installation. We accept drawings by fax, email, SMS text message and in-person.

Let's Get on the Same Page

Download the Schluter Shower System Installation Handbook 2014

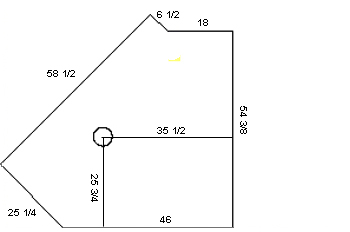

Instructions for Drawing Polygon Shower Pans

• Measurements and full diameter of shower pan measured from finished drywall.  Basically all around the outside
• Do NOT include bench or curb in your measurements
• Drain location is measured from at least 2 walls (at a 90 degree angle from each other)
• From finished drywall to center of drain pipe
• Mark all angles, including 45 degree angles
• Measurements need only to be to the 1/4" (note that the pan does not need to fit "tight")
• The drawing does NOT have to be to scale

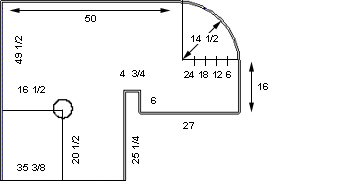

Instructions for Drawing Curved Shower Pans
